STM8-TSSOP20_ آداپتور پروگرامر
IC Test & Burn-in Socket with a simple board, for STM8 microcontroller in TSSOP20
- مشخصات فنی
- نام اورجینال قطعه: STM8-TSSOP20
- پکیج: TSSOP20
- کارخانه سازنده: Waveshare
- نام گروه: انواع پروگرامرها و بردهای آموزشی - Board & Programmers
- نام زیرگروه: سوکت آداپتور براي پروگرامر
- مشخصات خرید
- وضعیت موجودی: سفارش از خارج
- حداقل تعداد سفارش: 1
- شماره گروه: 20
- شماره زیرگروه: 254
- نام اورجینال زیرگروه: Socket Adapter For Programmer
STM8-TSSOP20_ آداپتور پروگرامر

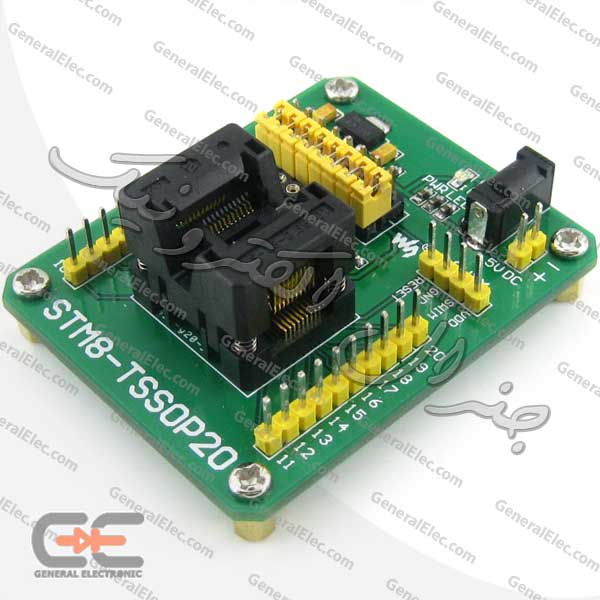

Enplas IC Test & Burn-in Socket with a simple board, specifically designed for STM8 microcontroller in TSSOP20(0.65mm pitch) package
Features
- 4-pin SWIM Port for programming or testing
- External crystal can be connected via on board socket for system clock
-
All the MCU pins are accessible on expansion connectors
- pin header pitch: 2.54mm(100mil)
Supported Devices
STM8 microcontroller in TSSOP20(0.65mm pitch) package with compatible pinouts:
- STM8L051FxPx / STM8L101FxPx / STM8L151FxPx / STM8S003FxPx
- STM8S103FxPx / STM8S903FxPx / STM8SPLNB1
-

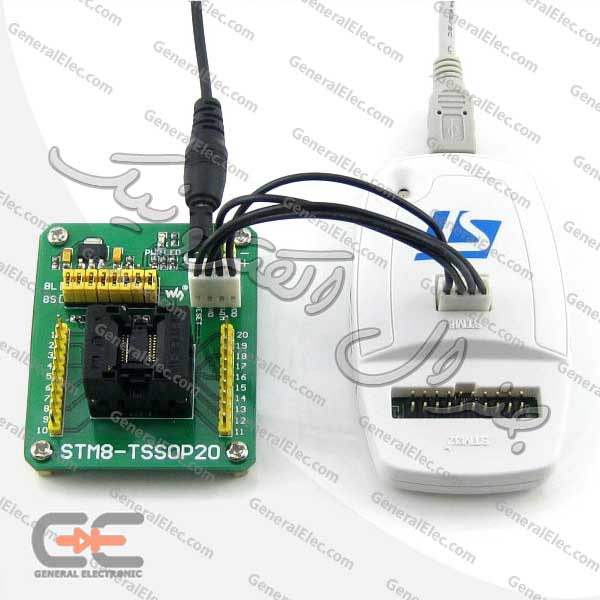

SWIM port
- for programming/debugging/testing
- compatible with ST-LINK
- Power indicator
-

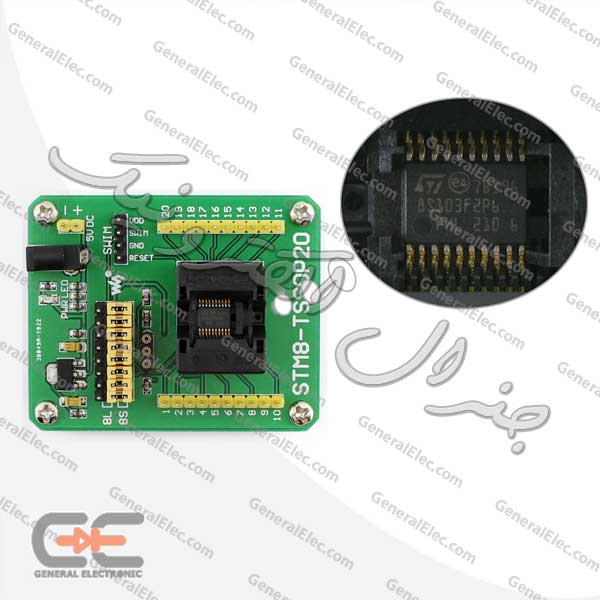

Pin headers connected to MCU pins
- clearly labeled with onboard marks
- easy for testing and further expansion
-

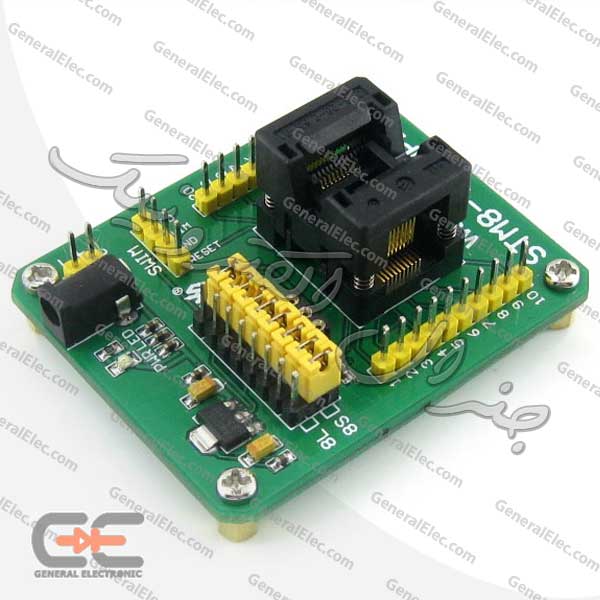

3.3V onboard regulator
- AMS1117-3.3
-
5V power input
- DC jack or 2-pin header
-
External crystal socket
- insert crystal to the holes on two sides, regardless of the middle hole
-
MCU selection jumpers
- 8S for STM8S1xx
- 8L for STM8L1xx
Outline and Dimensions
SWIM Port Header Pinout
The STM8-TSSOP20 houses SWIM headers for connecting a programmer. The header pinouts are shown in the figure 1 below.
